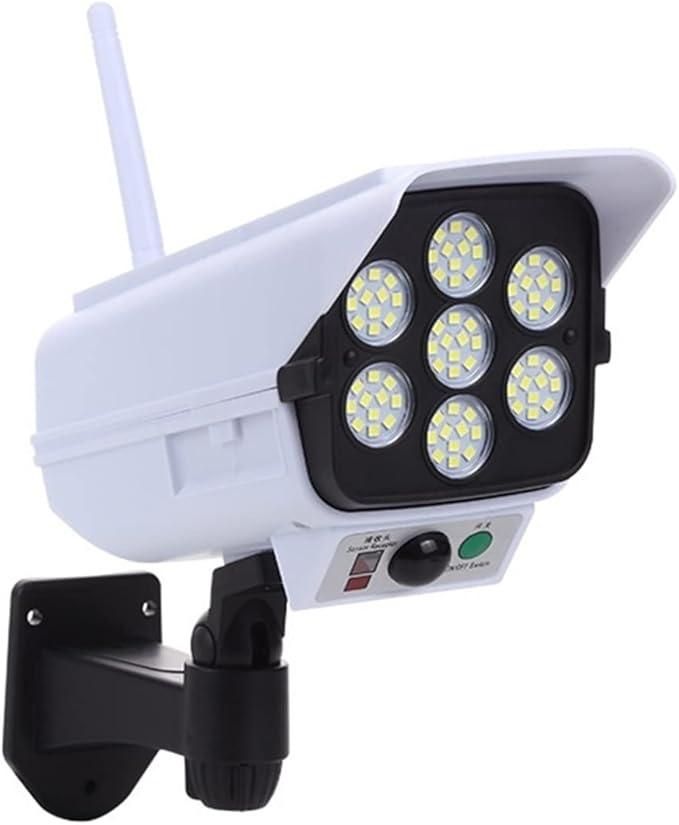

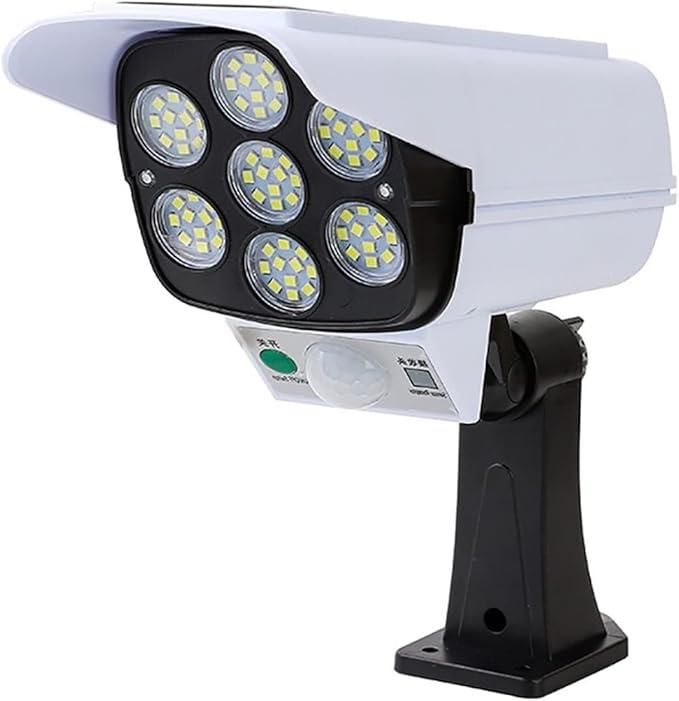

Human Body Sensor LED Lamp

Human Body Sensor LED Lamp

Rs. 984.00
Rs. 1,258.00 Rs. 984.00
22% OFF Sold out
Shipping calculated at checkout.

Order On WhatsApp
Ordered
Shipped
Delivered
Checkout safely using your preferred payment method

🏮 Human Body Sensor LED Lamp – Full Description

Overview

A Human Body Sensor LED Lamp (also known as a motion sensor light or PIR sensor LED lamp) is an intelligent lighting device that automatically turns on when it detects human movement and turns off after a set time when no motion is detected. It combines energy efficiency, smart automation, and convenience, making it ideal for indoor and outdoor use.

Working Principle

The lamp is equipped with a PIR (Passive Infrared) sensor that detects infrared radiation emitted by the human body. When a person enters the sensor’s detection range, the lamp automatically turns ON.
After the person leaves and no motion is detected for a pre-set duration, the lamp turns OFF automatically.

Basic Operation Flow:

  1. PIR sensor detects human motion via infrared heat changes.

  2. Signal is sent to the control circuit.

  3. The control circuit activates the LED light.

  4. After no motion is detected for a set delay (e.g., 15–30 seconds), the light turns off.

Key Features

  • Automatic On/Off: Turns on when motion is detected and off when the area is unoccupied.

  • Energy Saving: LEDs consume very little power and only operate when needed.

  • High Sensitivity: Detects movement within a defined radius (typically 3–6 meters).

  • Smart Light Control: Some models include a light sensor, preventing activation in daylight.

  • Wide Angle Detection: Usually around 120–180° coverage area.

  • Compact Design: Fits standard bulb sockets (E27, B22, etc.) or built-in lamp housings.

  • Long Lifespan: High-quality LEDs last 25,000–50,000 hours.

  • Easy Installation: No special wiring needed – plug-and-play or mount on wall/ceiling.

  • Variety of Power Ratings: Common wattages include 5W, 7W, 9W, 12W, 15W, or 18W.

  • Adjustable Timer & Sensitivity (optional): Allows users to customize delay time and detection distance.

Technical Specifications (Typical Example)

Parameter Specification
Power 9W (varies by model)
Voltage AC 85–265V, 50/60Hz
Light Source SMD LED
Color Temperature 3000K (Warm White) / 6000K (Cool White)
Luminous Flux 800–1000 lumens
Sensor Type PIR (Passive Infrared)
Detection Angle 120°–180°
Detection Range 3–6 meters
Delay Time 15–60 seconds (adjustable on some models)
Installation Type Screw bulb base / wall-mounted / ceiling-mounted
Material ABS plastic + aluminum heatsink
Operating Temperature -10°C to +45°C
Lifespan 30,000–50,000 hours

Applications

  • Indoor Use:

    • Hallways

    • Staircases

    • Bathrooms

    • Closets

    • Bedrooms

    • Garages

    • Basements

  • Outdoor Use (Weatherproof Models):

    • Entrances / Porches

    • Pathways

    • Garden lighting

    • Driveways

    • Security lighting

Advantages

✅ Reduces electricity waste
✅ Enhances safety and convenience
✅ Low maintenance and long lifespan
✅ Suitable for elderly and children (hands-free operation)
✅ Modern, sleek design fits any décor

Installation Instructions (Bulb Type)

  1. Turn off the power supply.

  2. Screw the sensor LED bulb into a compatible socket (E27 or B22).

  3. Adjust sensor angle or settings (if adjustable).

  4. Restore power and test operation.

  5. The light should automatically turn on when motion is detected in darkness.

Maintenance Tips

  • Avoid installing near heat sources or air vents (can cause false triggers).

  • Keep sensor surface clean from dust and dirt.

  • Ensure the detection range is unobstructed.
